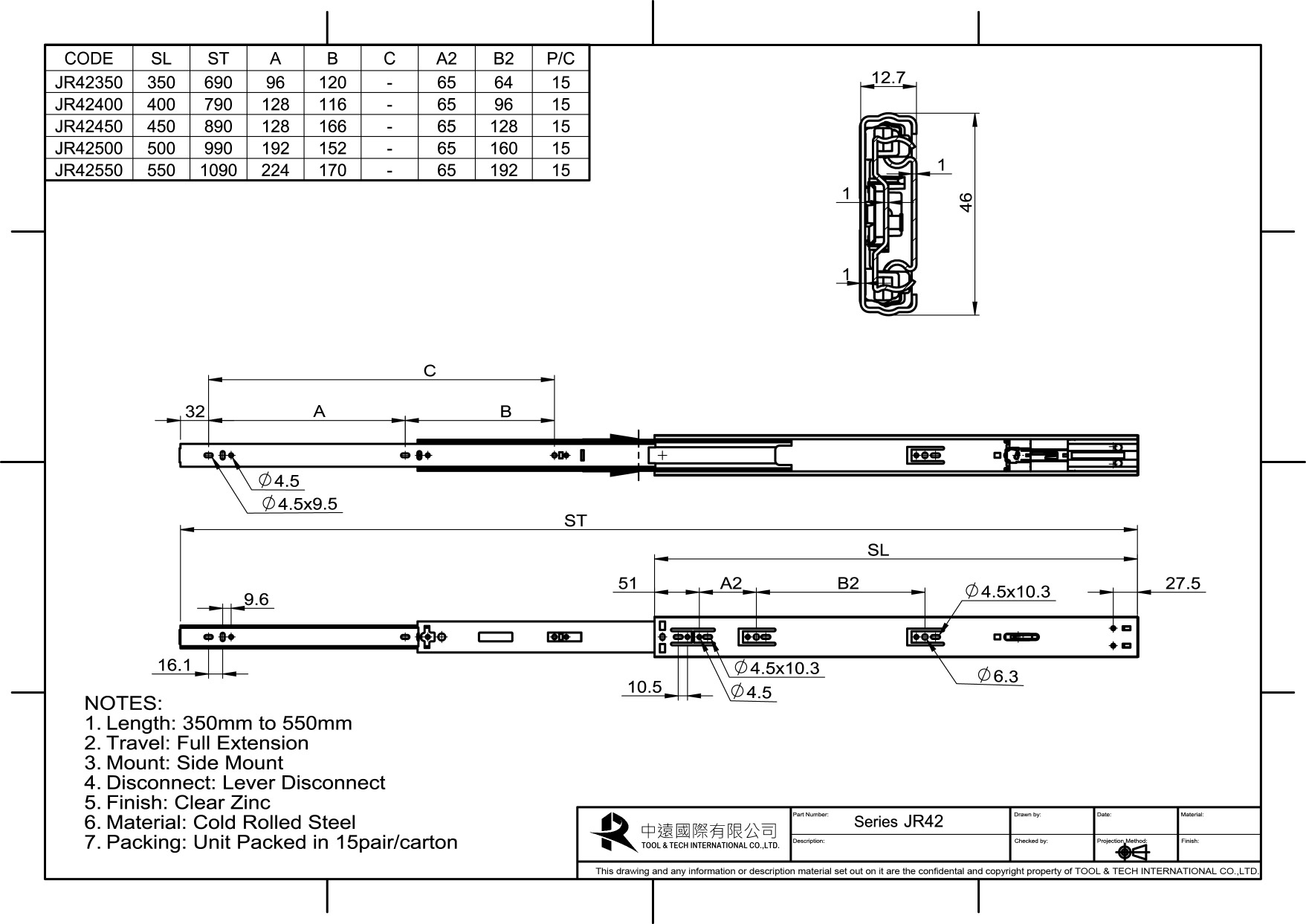

Series JR42
-
Dimensions:
- Length: 200mm to 550mm
- Height: 45.5mm
- Width: 12.7mm
-
Features:
- Lever disconnect
- Travel: Full Extension
- Mount: Side Mount
- Packing: Unit Packed in 15 pair/carton
-
Material & Finish:
- Material: Cold Rolled Steel
- Finish: Zinc coating
- SPEC
| CODE | SL | ST | A | B | C | A2 | B2 | P/C |
| JR42200 | 200 | 305 | – | – | – | – | – | 15 |
| JR42250 | 250 | 430 | – | – | 116 | – | – | 15 |
| JR42300 | 300 | 545 | – | – | 166 | 65 | – | 15 |
| JR42350 | 350 | 690 | 96 | 120 | – | 65 | 64 | 15 |
| JR42400 | 400 | 790 | 128 | 116 | – | 65 | 96 | 15 |
| JR42450 | 450 | 890 | 128 | 166 | – | 65 | 128 | 15 |
| JR42500 | 500 | 990 | 192 | 152 | – | 65 | 160 | 15 |
| JR42550 | 550 | 1090 | 224 | 170 | – | 65 | 192 | 15 |
